210-M1100 22291-210M1100 2AKR7 DASH KTM DUKE 125 2018Y S25FL164K SPC5645S+CONNECT JTAG FULL.rar


File ID: 119255

FULL IDENTIFICATION:


210-M1100 22291-210M1100 2AKR7 DASH KTM DUKE 125 2018Y S25FL164K SPC5645S+CONNECT JTAG FULL

210-M1100 22291-210M1100 2AKR7 DASH KTM DUKE 125 2018Y S25FL164K SPC5645S+CONNECT JTAG FULL.rar

50 €




  • Type: FULL

Technical Identification


BrandKtm
ModelDuke
Year2018
HW-DASH210-M1100
22291-210M1100
2AKR7
MicroSPC5645S+CONNECT
EepromS25FL164K
Programing modeJTAG
TypeFULL
File ID119255

Archive Contents


Total size: 20,42 MB

File Type Size
spc5645S shadow org xprog 22143km.bin16 KB
SPC5645S Shadow read SMOK.bin16 KB
spc5645s shadow smok.bin16 KB
SPC5645S Shadow_xprog.bin16 KB

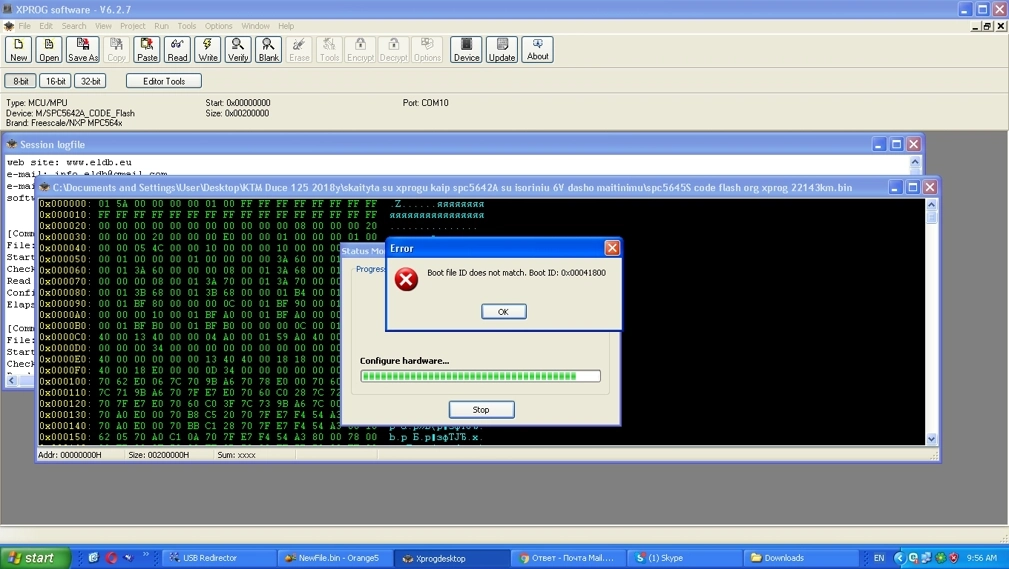

write back org dump.jpg481 KB
write only this dump.jpg465 KB
dash 960km.jpg446 KB
dash 22143km.jpg340 KB
eeprom 24C02.bin256 bytes
IMG_20190902_184115.jpg401 KB
IMG_20190902_184152.jpg340 KB
IMG_20190902_184249.jpg429 KB
IMG_20190902_184250.jpg444 KB
IMG_20190902_184309.jpg321 KB
IMG_20190902_184317.jpg478 KB
IMG_20190902_184322.jpg485 KB
IMG_20190902_184348.jpg371 KB
IMG_20190902_190107.jpg442 KB
IMG_20190902_220506.jpg229 KB
IMG_20190903_164315.jpg2,87 MB
IMG_20190903_164332.jpg3,83 MB
Kable.jpg111 KB
MPC5645S-1126963.pdf978 KB
MPC5645SPB.pdf279 KB
read cpu after replacing dump.jpg479 KB
read when SPC564A70 xprog.bin2 MB
read when SPC564A70 xprog.jpg433 KB
S25FL1-K_00-347291.pdf3,08 MB
S25FL164K_U3_no odo location.bin8 MB
S25FL164K_U4_no odo location.bin8 MB
S25FL164K_U22_until cpu TM4C1230_no odo location.bin8 MB
SPC5645S BAM_xprog.bin8 KB
spc5645s code flash dash after crash 960km.bin2 MB
spc5645s code flash dash after crash 960km_read after write to any dash and turn IGN ON test1.bin2 MB
spc5645s code flash dash after crash 960km_read after write to any dash and turn IGN ON.bin2 MB
spc5645S code flash org xprog 22143km.bin2 MB
SPC5645S Code Flash read SMOK.bin2 MB
spc5645s code flash smok.bin2 MB
SPC5645S Code Flash_xprog.bin2 MB
SPC5645S Data Flash_xprog.bin64 KB
SPC5645S Data Flash_xprog_15589km new.bin64 KB
SPC5645S JTAG.jpg2,26 MB
spc5645s shadow dash after crash 960km.bin16 KB

Description


This software 210-M1100 22291-210M1100 2AKR7 DASH KTM DUKE 125 2018Y S25FL164K SPC5645S+CONNECT JTAG FULL is specially for the brand DASH - KTM. It is used for competent and quick restoration of the functionality of this control unit, and also provides the ability to compare and configure the software to the needs of your client or car owner.

210-M1100 22291-210M1100 2AKR7 These numbers are intended for precise identification of the control unit and correct selection of software. This information is intended only for narrow specialists specializing in the field of repair of automotive electronics and is in no way a repair manual.
